Templates

Template builds a layout tree from plain data — an array, a JSON string, or a JSON file — instead of PHP code. This is useful when a layout needs to be stored (in a database, a config file, a CMS field) or edited by someone who shouldn’t have to write PHP.

Loading a template

use Kehet\ImagickLayoutEngine\Templates\Template;

Template::fromArray(['type' => 'rectangle', 'fill' => '#dc2626']);
Template::fromJson('{"type": "rectangle", "fill": "#dc2626"}');
Template::fromFile('/path/to/template.json');

All three return a Template. Invalid input (malformed JSON, a missing file, or a node that doesn’t match the expected shape) throws Kehet\ImagickLayoutEngine\Templates\Exceptions\InvalidTemplateException.

Rendering

$drawable = $template->toDrawable($data); // DrawableInterface
$drawable->draw($imagick, 0, 0, $width, $height);

toDrawable(array $data = []) builds the tree into the same DrawableInterface objects (RowContainer, Text, Image, …) you’d get by constructing them by hand, so it draws exactly like any other item or container. $data supplies values for {{placeholder}} substitution (see below); it can be omitted for templates with no placeholders.

Settings

Template::withSettings() returns a copy of the template configured with a TemplateSettings object, letting you opt into stricter parsing behavior without changing toDrawable()’s signature:

use Kehet\ImagickLayoutEngine\Templates\TemplateSettings;

$template = Template::fromJson($json)
    ->withSettings(new TemplateSettings(imageBaseDir: '/var/app/uploads'));

$template->toDrawable($data)->draw($imagick, 0, 0, $width, $height);

• imageBaseDir: when set, every image node’s resolved file path (after {{placeholder}} substitution) must resolve inside this directory, or toDrawable() throws InvalidTemplateException. Symlinks and ../absolute-path tricks are resolved and checked, not just pattern-matched. Defaults to null (no containment — any local path is accepted, matching pre-TemplateSettings behavior).

TemplateSettings is a small, immutable options object — future settings are added as additional named constructor parameters, so existing calls to withSettings() keep working unchanged.

Node types

Every node is an object with a type key that maps to one of the library’s container or item classes:

type	Class
row	RowContainer
column	ColumnContainer
grid	GridContainer
stack	StackContainer
text	Text
text-wrap	TextWrap
image	Image
rectangle	Rectangle

An unknown type throws InvalidTemplateException.

Common properties

These are read on every node, regardless of type:

• margin, padding: a number applied to all four sides, or an object with any of top/right/bottom/left.
• border: a { "fill": ..., "stroke": ..., "strokeWidth": ... } spec applied to all four sides, or an object with per-side specs under top/right/bottom/left. See Border.
• size: forced size in pixels along the main axis. Only read when the node is a child of a row or column.
• column, row, columnSpan, rowSpan: placement. Only read when the node is a child of a grid.

Containers

• row / column: gap (int) and children (array of nodes), passed to RowContainer/ColumnContainer::addItem($child, size: $child['size'] ?? null).
• grid: templateColumns / templateRows (arrays of int|null, see GridContainer), gap (a single number for both axes, or a [rowGap, columnGap] array), and children.
• stack: just children, added in order via StackContainer::addItem($child).

Drawable items

• rectangle: fill, stroke, strokeWidth, font — passed straight to the draw() helper.
• text / text-wrap: text (required), plus fill/stroke/strokeWidth/font, fontSize (default 60), minFontSize (default 10), gravity (default top-left), letterSpacing, wordSpacing. text-wrap also reads lineSpacing.
• image: file (required), mode (none | fit | fill, default none), gravity (default center).

Missing required fields (text on a text/text-wrap node, file on an image node) throw InvalidTemplateException, as does an invalid gravity or mode value.

Placeholder substitution

text and file values may contain {{name}} placeholders, filled in from the $data array passed to toDrawable():

Template::fromArray([
    'type' => 'text',
    'text' => 'Hello, {{name}}!',
])->toDrawable(['name' => 'World']); // renders "Hello, World!"

A placeholder with no matching key in $data is left in the output literally ({{name}} stays as-is) rather than being replaced with an empty string or throwing.

file values are checked for ImageMagick coder/URI-scheme prefixes (https:, msl:, ephemeral:, caption:, etc.) and for a leading | (ImageMagick’s pipe-delegate syntax, which executes the rest of the string as a shell command) both before and after substitution — a literal "file": "https://..." / "file": "|some command", or a placeholder that resolves to one, is rejected with InvalidTemplateException. This prevents template data (which may come from an untrusted source, e.g. a form field) from being used to trigger server-side requests, arbitrary ImageMagick coders, or arbitrary command execution through the image path.

The same untrusted-data concern applies to path traversal: a template like "file": "uploads/{{userId}}.jpg" will happily read ../../../etc/passwd or an absolute path off disk if {{userId}} isn’t validated by the caller, since a substituted value is just as much a real file path as a literal one. If $data may come from an untrusted source, pass imageBaseDir via withSettings() so any file path that resolves outside the allowed directory is rejected instead of reaching Imagick’s file loader.

JSON Schema

The package ships template.schema.json at its root, describing every node type above. Point your editor at it for autocompletion and validation while authoring templates:

{
  "$schema": "https://raw.githubusercontent.com/kehet/imagick-layout-engine/master/template.schema.json",
  "type": "rectangle",
  "fill": "#dc2626"
}

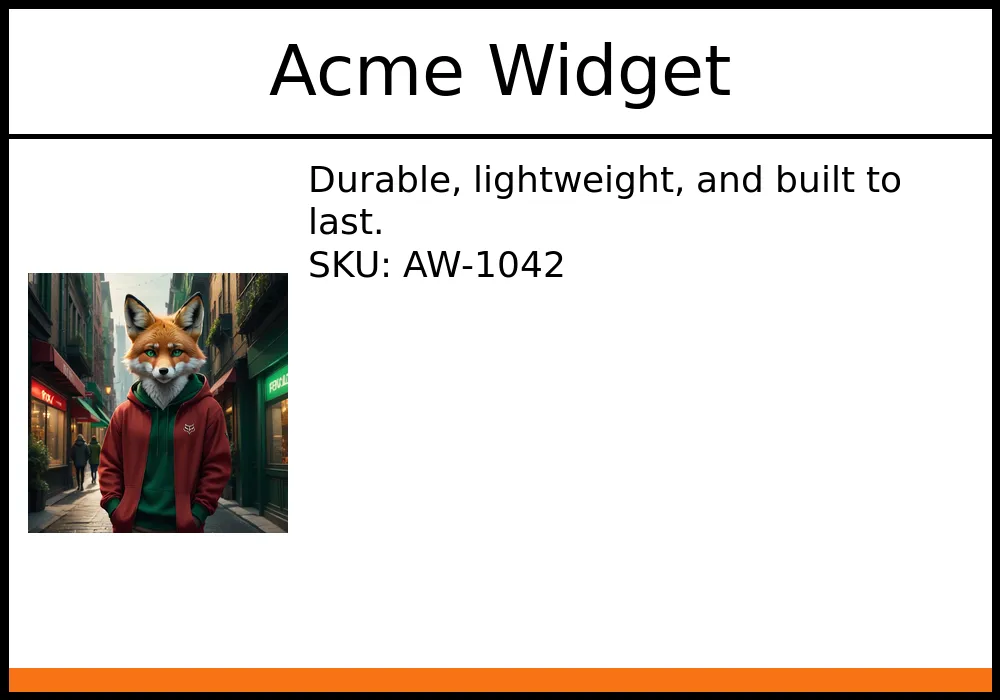

Example

$json = <<<'JSON'
{
  "type": "column",
  "border": { "stroke": "#000000", "strokeWidth": 8 },
  "children": [
    {
      "type": "text",
      "text": "{{title}}",
      "fontSize": 70,
      "gravity": "center",
      "padding": 20,
      "border": { "bottom": { "stroke": "#000000", "strokeWidth": 4 } },
      "size": 130
    },
    {
      "type": "row",
      "gap": 20,
      "padding": 20,
      "children": [
        { "type": "image", "file": "{{logo}}", "mode": "fit", "size": 260 },
        { "type": "text-wrap", "text": "{{description}}", "fontSize": 36 }
      ]
    },
    { "type": "rectangle", "fill": "#f97316", "size": 24 }
  ]
}
JSON;

$data = [
    'title' => 'Acme Widget',
    'logo' => __DIR__.'/logo.jpg',
    'description' => "Durable, lightweight, and built to last.\nSKU: AW-1042",
];

Template::fromJson($json)->toDrawable($data)->draw($imagick, 0, 0, $width, $height);
