Drawing a image with gravity

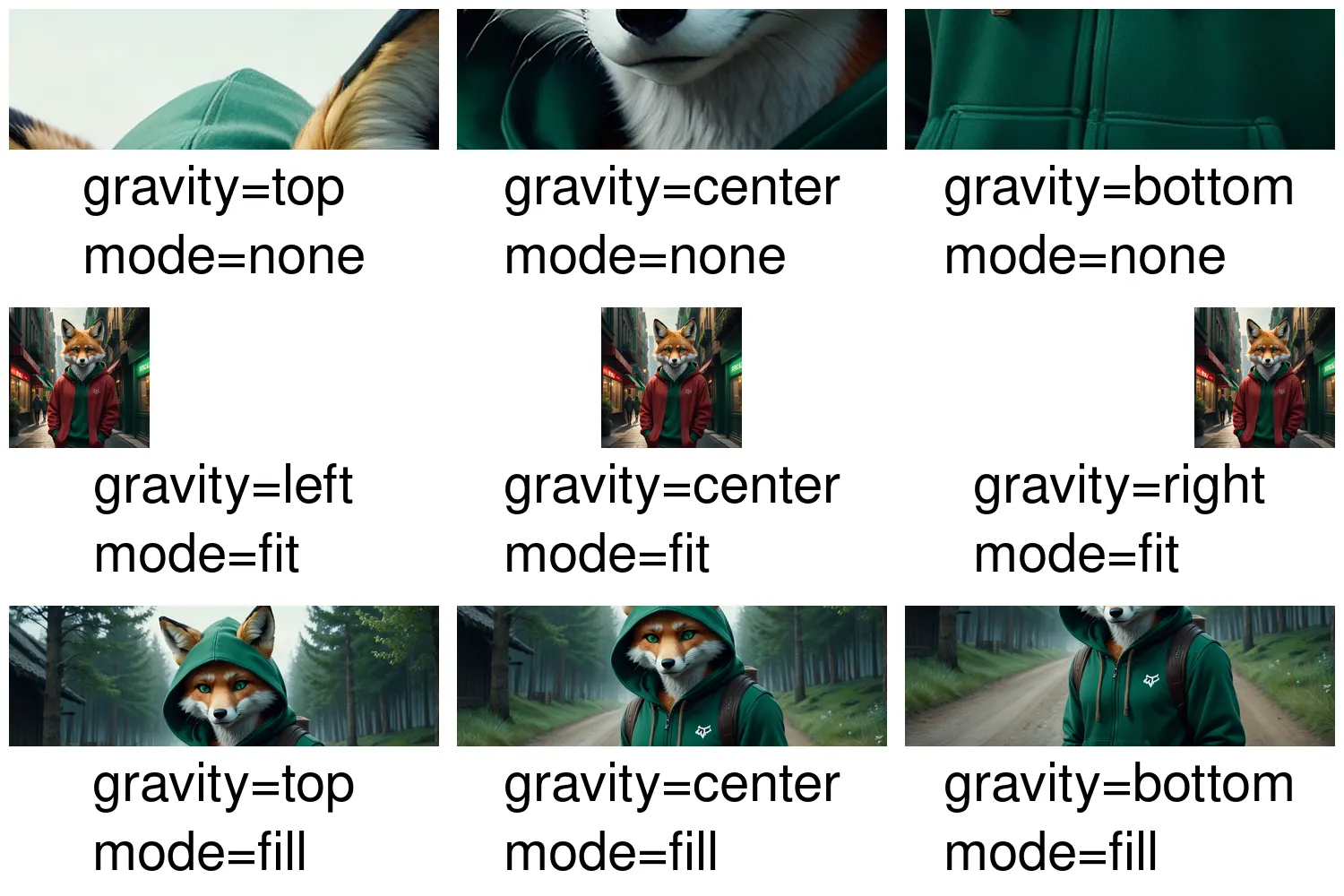

Output

Code

<?php

require 'vendor/autoload.php';

use Kehet\ImagickLayoutEngine\Containers\ColumnContainer;
use Kehet\ImagickLayoutEngine\Containers\RowContainer;
use Kehet\ImagickLayoutEngine\Enums\Gravity;
use Kehet\ImagickLayoutEngine\Enums\ImageMode;
use Kehet\ImagickLayoutEngine\Items\Image;
use Kehet\ImagickLayoutEngine\Items\Text;

function createGravityDemoContainer(string $imagePath, Gravity $gravity, ImageMode $mode): ColumnContainer
{
    $container = new ColumnContainer;
    $container->setMargin(10);
    $container->addItem(new Image($imagePath, $mode, $gravity));
    $container->addItem(new Text(
        draw(fill: 'black'),
        sprintf(
            "gravity=%s\nmode=%s",
            $gravity->value,
            $mode->value
        ),
        gravity: Gravity::CENTER
    ));

    return $container;
}

$width = 1500;
$height = 1000;

$smallImage = 'example-image-small.jpeg';
$largeImage = 'example-image-large.jpeg';

// Create new image with white background

$imagick = new Imagick;
$imagick->newImage($width, $height, new ImagickPixel('white'));

// Define root container

$root = new ColumnContainer;

$row1 = new RowContainer;
$row1->addItem(createGravityDemoContainer($largeImage, Gravity::TOP, ImageMode::NONE));
$row1->addItem(createGravityDemoContainer($largeImage, Gravity::CENTER, ImageMode::NONE));
$row1->addItem(createGravityDemoContainer($largeImage, Gravity::BOTTOM, ImageMode::NONE));
$root->addItem($row1);

$row2 = new RowContainer;
$row2->addItem(createGravityDemoContainer($smallImage, Gravity::LEFT, ImageMode::FIT));
$row2->addItem(createGravityDemoContainer($smallImage, Gravity::CENTER, ImageMode::FIT));
$row2->addItem(createGravityDemoContainer($smallImage, Gravity::RIGHT, ImageMode::FIT));
$root->addItem($row2);

$row3 = new RowContainer;
$row3->addItem(createGravityDemoContainer($largeImage, Gravity::TOP, ImageMode::FILL));
$row3->addItem(createGravityDemoContainer($largeImage, Gravity::CENTER, ImageMode::FILL));
$row3->addItem(createGravityDemoContainer($largeImage, Gravity::BOTTOM, ImageMode::FILL));
$root->addItem($row3);

// Draw container onto image

$root->draw($imagick, 0, 0, $width, $height);

// Output image as png to file

$imagick->setImageFormat('png');
$imagick->writeImage(__DIR__ . '/06-image-gravity.png');

Template

The same layout as a template. Templates have no equivalent to the createGravityDemoContainer() helper — a JSON tree has no loops or functions — so each of the nine demo cells is written out in full:

{
    "type": "column",
    "children": [
        {
            "type": "row",
            "children": [
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","gravity":"top"},
                        {"type":"text","text":"gravity=top\nmode=none","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","gravity":"center"},
                        {"type":"text","text":"gravity=center\nmode=none","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","gravity":"bottom"},
                        {"type":"text","text":"gravity=bottom\nmode=none","fill":"black","gravity":"center"}
                    ]
                }
            ]
        },
        {
            "type": "row",
            "children": [
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-small.jpeg","mode":"fit","gravity":"left"},
                        {"type":"text","text":"gravity=left\nmode=fit","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-small.jpeg","mode":"fit","gravity":"center"},
                        {"type":"text","text":"gravity=center\nmode=fit","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-small.jpeg","mode":"fit","gravity":"right"},
                        {"type":"text","text":"gravity=right\nmode=fit","fill":"black","gravity":"center"}
                    ]
                }
            ]
        },
        {
            "type": "row",
            "children": [
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","mode":"fill","gravity":"top"},
                        {"type":"text","text":"gravity=top\nmode=fill","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","mode":"fill","gravity":"center"},
                        {"type":"text","text":"gravity=center\nmode=fill","fill":"black","gravity":"center"}
                    ]
                },
                {
                    "type": "column",
                    "margin": 10,
                    "children": [
                        {"type":"image","file":"example-image-large.jpeg","mode":"fill","gravity":"bottom"},
                        {"type":"text","text":"gravity=bottom\nmode=fill","fill":"black","gravity":"center"}
                    ]
                }
            ]
        }
    ]
}
